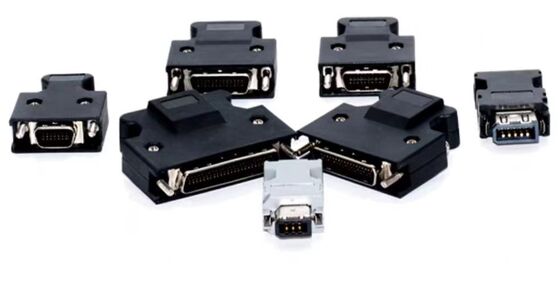

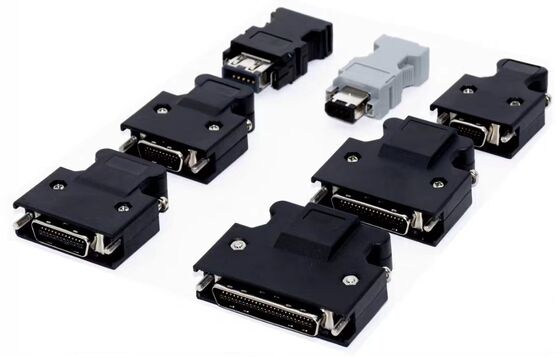

Servo SCSI Connector with 1000V Voltage Rating and Silver Gold Plated Contacts for Industrial Automation

Product Description:

Servo Motor Connectors are essential components designed to provide reliable and efficient connections for various types of servo motors, including AC Brushless Servo Motors and AC Servo Drives. These connectors are engineered to meet the demanding requirements of industrial automation, robotics, and precision control systems, ensuring seamless communication and power transmission between the motor and its controller.

Constructed from high-quality metal and plastic materials, these connectors offer exceptional durability and resistance to environmental factors. The metal components provide robust mechanical strength and excellent conductivity, while the plastic parts ensure insulation and protection against dust, moisture, and other contaminants. This combination of materials guarantees long-lasting performance even in harsh operating conditions, making them ideal for applications involving AC Brushless Servo Motors where reliability is paramount.

One of the standout features of these Servo Motor Connectors is their advanced contact plating. The connectors utilize silver plating for the contacts, which enhances electrical conductivity and reduces contact resistance, ensuring efficient power transfer. Additionally, the pins are gold-plated, providing superior corrosion resistance and maintaining signal integrity over extended periods of use. This dual plating approach significantly improves the connector's lifespan and performance, particularly in systems requiring precise control and high-frequency data transmission.

The connectors are available in multiple configurations to accommodate different servo motor setups. They come with various numbers of contacts, including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin options. This versatility allows users to select the appropriate connector type based on the specific wiring and control requirements of their AC Servo Drive or AC Brushless Servo Motor system. Whether you need a simple connection for power and ground or a more complex interface with multiple signal lines, these connectors provide the flexibility to meet diverse application needs.

Designed to handle a voltage rating of up to 1000V, these Servo Motor Connectors ensure safe and reliable operation in high-voltage environments. This makes them suitable for a wide range of servo motor applications, including industrial machinery, automation equipment, and robotics, where high voltage and current levels are common. The high voltage rating also contributes to enhanced safety and reduced risk of electrical failure, which is critical for maintaining uninterrupted operation and protecting sensitive electronic components.

In summary, Servo Motor Connectors offer a combination of robust material construction, advanced contact plating, versatile pin configurations, and high voltage rating, making them an ideal choice for connecting AC Brushless Servo Motors and AC Servo Drives. Their reliable performance and durability ensure consistent operation in demanding industrial environments, facilitating precise motor control and efficient power delivery. Whether you are designing a new automation system or upgrading existing equipment, these connectors provide the quality and flexibility needed to support advanced servo motor technologies effectively.

Features:

• Product Name: Servo Motor Connectors (6FX2003)
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Material: Metal and Plastic
• Termination Type: Crimp and Solder
• Mounting Type: Panel Mount and Cable Mount
• Compatible with High Torque DC Servo Motor applications
• Suitable for AC Brushless Servo Motor connections
• Designed to support High Torque DC Servo Motor performance

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to provide reliable and efficient connectivity solutions for various servo motor applications. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure high-quality performance and safety in demanding industrial environments. With a voltage rating of 1000V and a current rating ranging from 1A to 10A and beyond, these connectors are well-suited for both low and high power applications.

One of the primary application occasions for the NO MARK Servo Motor Connectors is in DC Servo Motor Drives. These connectors facilitate seamless communication between the servo motor and its controller, ensuring precise control and smooth operation. Whether you are working with small-scale automation projects or large industrial machinery, these connectors support a wide range of current ratings and wire gauges (18-24 AWG or larger, with diameters from AWG 3 to 12), making them versatile for various wiring needs.

Another key scenario where these connectors excel is in Brushless Servo Motor systems. Brushless servo motors require robust, reliable connections to maintain optimal performance and reduce downtime. The NO MARK connectors, available in multiple pin configurations including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, provide the flexibility needed to match different motor specifications and control requirements. Their gender compatibility across these pin counts further enhances their adaptability in complex servo drive setups.

These connectors are ideal for use in automated manufacturing lines, robotics, CNC machinery, and other industrial automation systems that rely on precise motor control. The product’s packaging in sturdy carton boxes and the availability of a minimum order quantity of 100 pieces make them suitable for both small and large-scale procurement. With a supply ability of up to 1000 pcs/day and a delivery time of 1-3 working days, customers can rely on prompt availability to meet urgent project deadlines.

Payment terms are flexible, supporting T/T and PayPal, which facilitates smooth transactions for global customers. Overall, the NO MARK 6FX2003 Servo Motor Connectors are an excellent choice for engineers and technicians who demand high performance and reliability in DC Servo Motor Drive and Brushless Servo Motor applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China under strict CE and ISO9001 certifications, these connectors are ideal for applications in Industrial Automation, including Brushless Servo Motor, Electro Hydraulic Servo, and DC Servo Motor Drive systems.

We offer customizable options to suit your specific requirements, including contact plating choices of Silver or Golded Pins, termination types such as Crimp or Solder, and mounting types including Panel Mount or Cable Mount. Each connector is carefully packaged in a sturdy carton box to ensure safe delivery.

With a minimum order quantity of 100 pieces and a supply ability of 1000 pcs per day, we guarantee a fast delivery time of 1-3 working days. Payment terms are flexible with options including T/T and PayPal to facilitate easy transactions.

Choose our NO MARK brand Servo Motor Connectors for reliable and efficient connectivity solutions tailored to your industrial automation needs.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. For technical support, please ensure you have the product model number and detailed description of your issue ready. Our support team can assist with installation guidance, troubleshooting, compatibility questions, and maintenance tips to help you maximize the performance and longevity of your servo motor connectors.

In addition to technical support, we offer a range of services including product customization to meet specific application requirements, replacement parts, and repair services. We also provide comprehensive documentation, including datasheets, wiring diagrams, and installation manuals, to help you get the most out of your servo motor connectors.

For optimal performance, we recommend regular inspection and proper handling of the connectors to prevent damage from environmental factors such as dust, moisture, and mechanical stress. Our team is committed to ensuring your satisfaction and the sustained operation of your servo motor systems through expert support and service.
